Acoustic anisotropy for acoustooptic NaBi(MoO4)2 crystals

Martynyuk-Lototska I., Mys O., Kushnirevych M., Krupych O. and Vlokh R.

Download this article

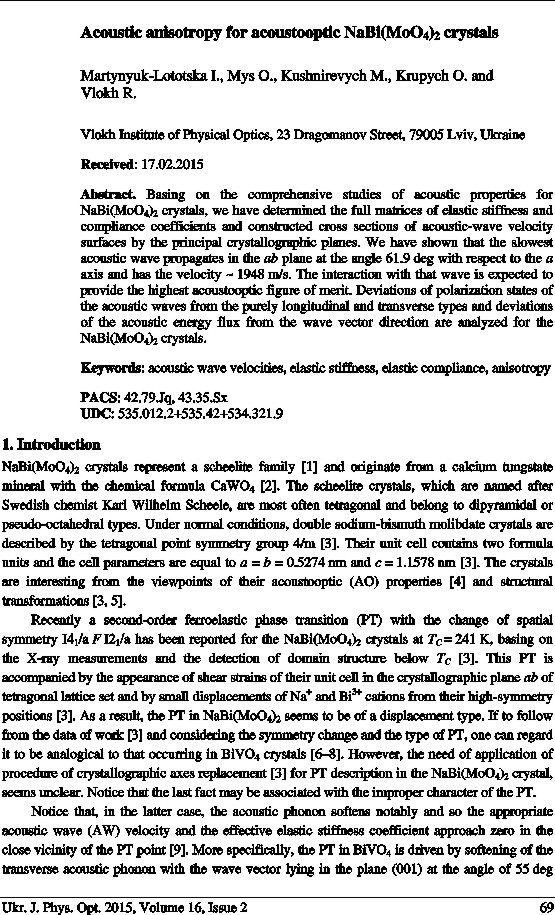

Abstract. Basing on the comprehensive studies of acoustic properties for NaBi(MoO4)2 crystals, we have determined the full matrices of elastic stiffness and compliance coefficients and constructed cross sections of acoustic-wave velocity surfaces by the principal crystallographic planes. We have shown that the slowest acoustic wave propagates in the ab plane at the angle 61.9 deg with respect to the a axis and has the velocity ~ 1948 m/s. The interaction with that wave is expected to provide the highest acoustooptic figure of merit. Deviations of polarization states of the acoustic waves from the purely longitudinal and transverse types and deviations of the acoustic energy flux from the wave vector direction are analyzed for the NaBi(MoO4)2 crystals

Keywords: acoustic wave velocities, elastic stiffness, elastic compliance, anisotropy

PACS: 42.79.Jq, 43.35.Sx
UDC: 535.012.2+535.42+534.321.9
Ukr. J. Phys. Opt. 16 69-76
doi: 10.3116/16091833/16/2/69/2015
Received: 17.02.2015

Анотація.  На основі всебічного вивчення акустичних властивостей кристалів NaBi(MoO4)2 визначено всі коефіцієнти матриць пружних модулів і податливостей і побудовано перетини поверхонь швидкостей акустичних хвиль кристалографічними площинами. Встановлено, що найповільніша акустична хвиля поширюється в площині ab під кутом 61.9 град до осі a зі швидкістю ~ 1948 м/с. Взаємодіє з нею дає змогу очікувати найвищого значення коефіцієнта акустооптичної якості. Проаналізовано відхилення вектора акустичного зміщення від поздовжнього і поперечного станів поляризації акустичних хвиль, а також відхилення потоку акустичної енергії від напрямку хвильового вектора для кристалів NaBi(MoO4)2.
