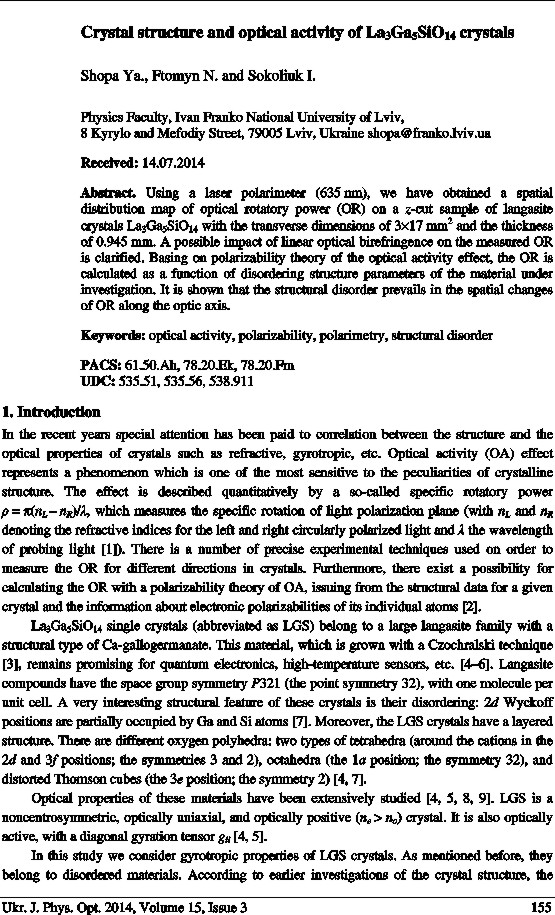

Crystal structure and optical activity of La3Ga5SiO14 crystals

Shopa Ya., Ftomyn N. and Sokoliuk I.

Download this article

Abstract. Using a laser polarimeter (635 nm), we have obtained a spatial distribution map of optical rotatory power (OR) on a z-cut sample of langasite crystals La3Ga5SiO14 with the transverse dimensions of 317 mm2 and the thickness of 0.945 mm. A possible impact of linear optical birefringence on the measured OR is clarified. Basing on polarizability theory of the optical activity effect, the OR is calculated as a function of disordering structure parameters of the material under investigation. It is shown that the structural disorder prevails in the spatial changes of OR along the optic axis.

Keywords: optical activity, polarizability, polarimetry, structural disorder

PACS: 61.50.Ah, 78.20.Ek, 78.20.Fm
UDC: 535.51, 535.56, 538.911
Ukr. J. Phys. Opt. 15 155-161
doi: 10.3116/16091833/15/3/155/2014
Received: 14.07.2014

Анотація.  За допомогою лазерного поляриметра (635 нм) побудовано мапу просторового розподілу питомого оптичного повертання (ОП) для зразка Z-зрізу кристалів лангаситу La3Ga5SiO14 із поперечними розмірами 317 мм2 і товщиною 0,945 мм. Ураховано можливий вплив лінійного двозаломлення на вимірюване ОП. На основі теорії поляризованості для оптичної активності розраховано питоме ОП як функцію параметрів розупорядкування структури досліджуваного матеріалу. Показано, що структурне розупорядкування переважає в просторових змінах оптичної активності вздовж оптичної осі.
REFERENCES
  1. Hecht E, Optics (4th Ed.). Harlow: Addison-Wesley, 2002.
  2. Devarajan V and Glazer A, 1986. Theory and computation of optical rotatory power in inor-ganic crystals. Acta. Cryst. A. 42: 560–569. http://dx.doi.org/10.1107/S0108767386098732
  3. Dubovik M F, 1992. Growing and properties of some oxide single crystals for multifunc-tional applications. Inorg. Mater. 28: 1999–2006.
  4. Kaminski A A, Aminov LK, Ermolaev VL, Kornienko AA, Kravchenko VB, Malkin BZ, Mil BV, Perlin Yu E, Petrosyan AG, Pukhov KK, Sakun VP, Sarkisov SE, Sveshnikov EB, Skripko GA, Starostin NV, Shkaderevich AP, Physics and spectroscopy of laser crystals. Moscow: Nauka, 1986.
  5. Kaldybaev K A, Konstantinova A F and Perekalina Z B, Gyrotropy of uniaxial absorbing crystals. Moscow: ISPIN, 2000.
  6. Fu X H, Che Y and Li Y L, 2011. Diode-pumped Nd: LGS intracavity-doublet green laser at 532 nm. Laser Phys. 21: 995–997. http://dx.doi.org/10.1134/S1054660X11110077
  7. Maksimov A A, Molchanov V N, Mill B V, Belokoneva E L, Rabadanov M Kh, Pugacheva A A, Pisarvskii Yu V and Simonov V I, 2005. Absolute structure of La3Ga5SiO14 langasite crystals. Crystallogr. Rep. 50: 751–758. http://dx.doi.org/10.1134/1.2049391
  8. Veremeichik T F, 2011. Optical activity and crystalline structure of crystals of the langasite family. Crystallogr. Rep. 56: 1060–1065. http://dx.doi.org/10.1134/S1063774511060265
  9. Kitaura M, Mochizuki K, Inabe Y, Itoh M, Nakagava H and Oishi S, 2004. Fundamental op-tical properties and electronic structure of langasite La3Ga5SiO14 crystals. Phys. Rev. B. 69: 115120-1–115120-6. http://dx.doi.org/10.1103/PhysRevB.69.115120
  10. Geras'kin V V, Klyukhina Yu V, Buzanov O A and Petrakov V S, 2007. Influence of optical inhomogeneity of langasite crystals on the value of measured electro-optic coefficient. Crys-tallogr. Rep. 52: 870–879. http://dx.doi.org/10.1134/S1063774507050161
  11. Dubovskii A B, Tyunina E A, Domoroshchina E N, Kuz'micheva G M and Rybakov V B, 2008. Composition effect on the elastic properties of langasite. Inorg. Mater. 44: 520–526. http://dx.doi.org/10.1134/S0020168508050166
  12. Jung, Water G, Op Amp applications handbook. Amsterdam: Elsevier, 2005.
  13. Azzam R M A and Bashara N M, Ellipsometry and polarized light. Amsterdam: Elsevier, 2003.
  14. Vlokh O G, Spatial dispersion phenomena in parametric crystal optics. Lviv: Vyshcha Shkola, 1984.
  15. Konstantinova A F, Evdishchenko A E and Imangazieva K B, 2006. Manifestation of optical activity in crystals of different symmetry classes. Crystallogr. Rep. 51: 998–1008. http://dx.doi.org/10.1134/S1063774506060113
  16. Born M and Huang K, Dynamical theory of crystal lattices. Oxford: Oxford University Press, 1998.
  17. Shopa Ya and Ftomyn N, Calculation of optical rotation and refractive indices in the langasite family crystals. Proc. Internat. Conf. on Oxide Materials for Electron. Eng. (ОМЕЕ-2012). Nat. Univ. "Lviv Polytechnics" (2012) 137–138.
