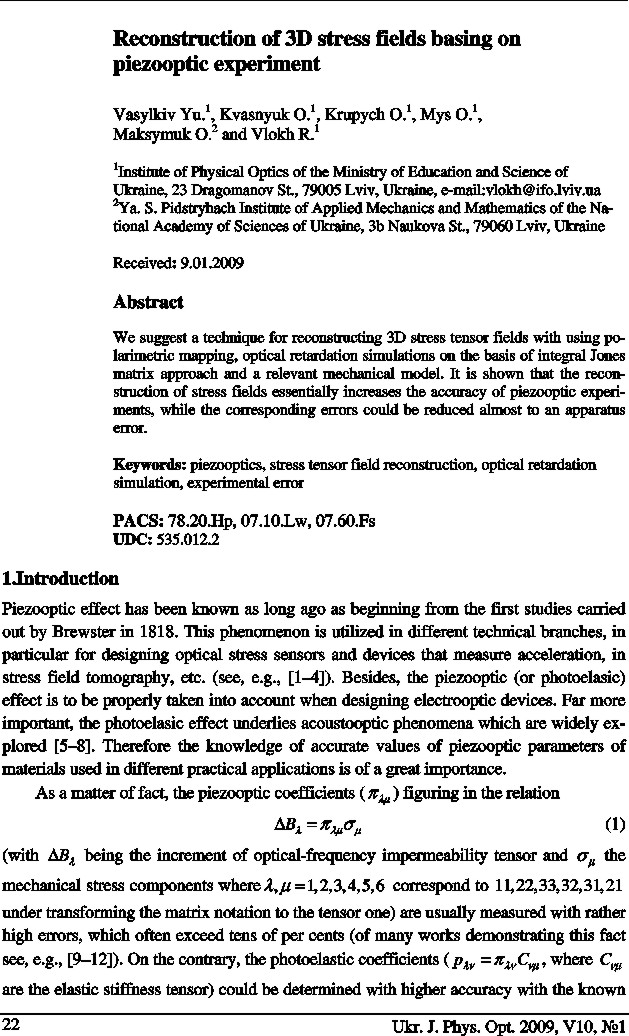

Reconstruction of 3D stress fields basing on piezooptic experiment
1Vasylkiv Yu., 1Kvasnyuk O., 1Krupych O., 1Mys O., 2Maksymuk O., 1Vlokh R.

1Institute of Physical Optics of the Ministry of Education and Science of Ukraine, 23 Dragomanov St., 79005 Lviv, Ukraine
2Ya.S. Pidstryhach Institute of Applied Mechanics and Mathematics of the National Academy of Sciences of Ukraine, 3b Naukova St., 79060 Lviv, Ukraine

download full version

We suggest a technique for reconstructing 3D stress tensor fields with using polarimetric mapping, optical retardation simulations on the basis of integral Jones matrix approach and a relevant mechanical model. It is shown that the reconstruction of stress fields essentially increases the accuracy of piezooptic experiments, while the corresponding errors could be reduced almost to an apparatus error.

Keywords:piezooptics, stress tensor field reconstruction, optical retardation simulation, experimental error

PACS: 78.20.Hp, 07.10.Lw, 07.60.Fs
Ukr. J. Phys. Opt. 10 22-37
doi: 10.3116/16091833/10/1/22/2009
Received: 25.12.2008

Анотація. В роботі запропонований метод реконструкції 3D тензорного поля напружень з використанням поляриметричного картографування, моделювання оптичної різниці фаз на основі підходу інтегральних матриць Джонса і відповідної механічної моделі. Показано, що реконструкція поля напружень суттєво підвищує точність п’єзооптичного експерименту, тоді як відповідні похибки можуть бути зменшеними практично до апаратних.

REFERENCES
  1. Grakh I I and Mozhanskaya A F, 1971. A type of mechanically anisotropic, optically sensitive material. Mekhanika Polimerov 5: 835-839.
  2. Weber Y-J, 1995. Determination of internal strain by optical measurements. Phys. Rev. B 51: 1220912215. doi:10.1103/PhysRevB.51.12209
  3. Narasimhamurty T S, Photoelastic and Electrooptic Properties of Crystals. New York: Plenum Press, (1981).
  4. Slezinger I I, Alievskaya A N and Mironov Yu V, 1985. Piezooptic devices. Izmeritelnaya Tekhnika 12: 17-19.
  5. Auld B A, Acoustic Fields and Waves in Solids. Malabar, FL: Krieger, (1990).
  6. Balakshii V I, Parygin V N and Chirkov L E, Physical fundamentals of acoustooptics. Moscow: Radio i Sviaz', (1985).
  7. Xu J and Stroud R, Acousto-optic Devices: Principles, Design, and Applications. New York: Wiley, (1992).
  8. Shaskolskaya M P, Acoustic crystals. Moscow: Nauka, (1982).
  9. Ajmera P K, Huner B, Dutta A K, and Hartley C S, 1988. Simulation and observation of infrared pie-zobirefringent images in diametrically compressed semiconductor disks. Appl. Opt. 27: 752-757.
  10. Martynyuk-Lototska I, Mys O, Dudok T, Adamiv V, Smirnov Ye and Vlokh R, 2008. Acoustooptic Interaction in alpha-BaB2O4 and Li2B4O7 Crystals. Appl. Opt. 47: 34463454. doi:10.1364/AO.47.003446PMid:18594591
  11. Martynyuk-Lototska I, Dudok T, Mys O and Vlokh R, 2008. Elastic, Piezooptic and Acoustooptic Properties of SrB4O7 and PbB4O7 Crystals. Opt. Mater. 31:660-667. doi:10.1016/j.optmat.2008.06.020
  12. Mys O, Adamiv V, Martynyuk-Lototska I, Burak Ya and Vlokh R, 2007. Piezooptic and acoustic properties of KLiB4O7 crystals. Ukr.J.Phys.Opt. 8: 138-142. doi:10.3116/16091833/8/3/138/2007
  13. Dixon R W, Cohen M G, 1966. A new technique for measuring magnitudes of photoelastic tensors and its application to lithium niobate. Appl. Phys. Lett. 8: 205-207. doi:10.1063/1.1754556
  14. Dixon R W, 1967. Photoelastic properties of selected materials and their relevance for application to acoustic light modulators and scanners. J. Appl. Phys. 38: 5149-5153. doi:10.1063/1.1709293
  15. Peng H J, Wong S P, and Ho H P, 2004. Measurement of orientation dependent stress-optic coefficient of GaAs single crystals. Appl. Phys. Lett. 84: 1829-1831. doi:10.1063/1.1675938
  16. Aben H, Errapart A, and Ainola L, 2006. On real and imaginary algorithms of optical tensor field tomography. Proc. Estonian Acad. Sci. Phys. Math. 55: 112-127.
  17. Hammer H. and Lionheart W R B, 2005. Reconstruction of spatially inhomogeneous dielectric tensors through optical tomography. J. Opt. Soc. Am. A 22: 250-255. doi:10.1364/JOSAA.22.000250
  18. Puro A É and Karov D D, 2007. Tensor field tomography of residual stresses. Opt. Spectr. 103: 678-682. doi:10.1134/S0030400X07100244
  19. Aben H, Errapart A, Ainola L and Anton J, 2005. Photoelastic tomography for residual stress measurement in glass. Opt. Eng. 44: 093601. doi:10.1117/1.2047368
  20. Vlokh R, Krupych O, Kostyrko M, Netolya V and Trach I, 2001. Gradient thermooptical effect in LiNbO3 crystals. Ukr. J. Phys. Opt. 2: 154-158. doi:10.3116/16091833/2/3/154/2001
  21. http://lzos.ru/produktsiya-nashego-predpriyatiya/
  22. http://hypertextbook.com/facts/2005/glass.shtml
  23. Bayda E N, Some spatial problems of the theory of elasticity. Leningrad: Izd. LGU, (1983)
