Ukrainian Journal of Physical Optics

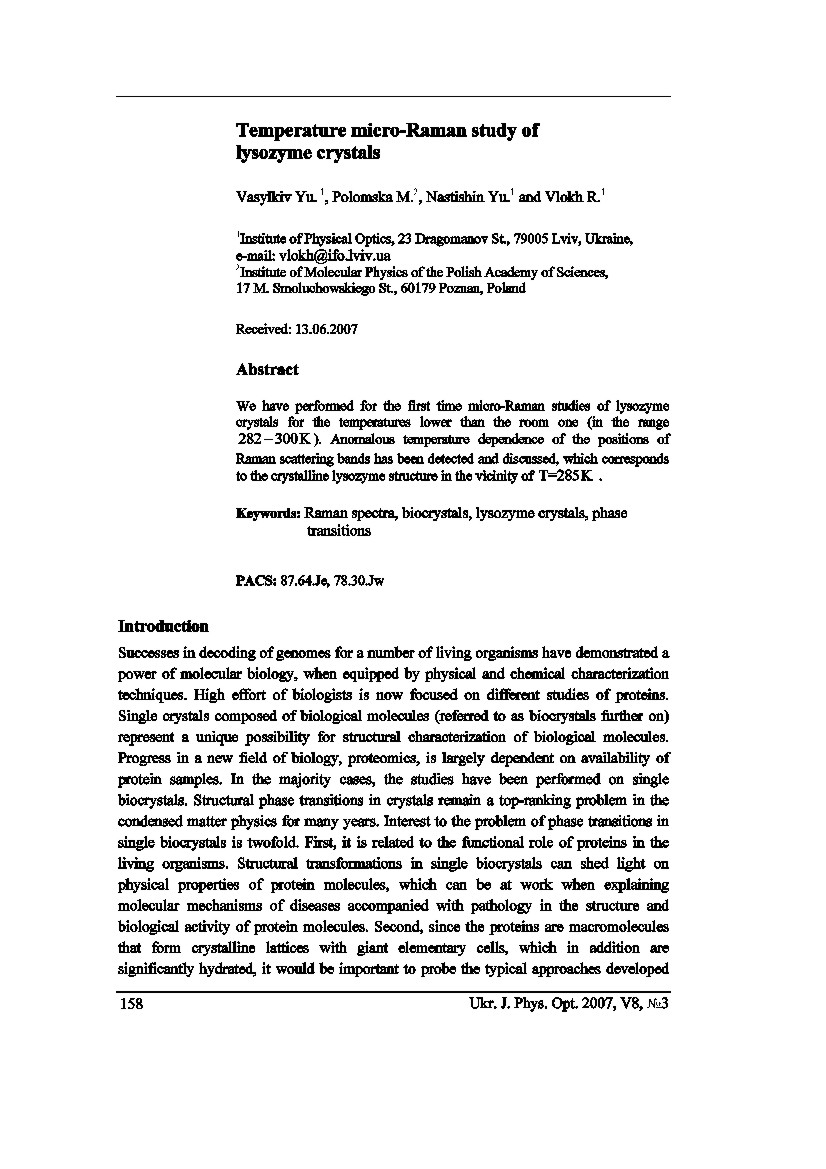

Temperature micro-Raman study of lysozyme crystals
Order this article

Vasylkiv Yu., Polomska M., Nastishin Yu. and Vlokh R.

Keywords: Raman spectra, biocrystals, lysozyme crystals, phase transitions

PACS: 87.64.Je, 78.30.Jw
Ukr. J. Phys. Opt. 8 158-165 doi: 10.3116/16091833/8/3/158/2007
Received: 13.06.2007

We have performed for the first time micro-Raman studies of lysozyme crystals for the temperatures lower than the room one (in the range 282-300K). Anomalous temperature dependence of the positions of Raman scattering bands has been detected and discussed, which corresponds to the crystalline lysozyme structure in the vicinity of T=285K.

REFERENCES

1. Jolles P and Berthou J, 1972. High temperature crystallization of lysozyme: an example of phase transition. FEBS Lett. 23: 22-23.
        doi:10.1016/0014-5793(72)80273-4 http://dx.doi.org/10.1016/0014-5793(72)80273-4
2. Berthou J and Jolles P, 1974. A phase transition in protein crystal: the example of hen lysozyme. Biochim. et Biophys. Acta. 336: 222-227.
3. Kobayashi J, Asahi T, Sakurai M, Kagomiya I, Asai H and Asami H, 1998. The optical activity of lysozyme crystals. Acta Cryst. A54, 581-590.
        doi:10.1107/S0108767398001986 http://dx.doi.org/10.1107/S0108767398001986
4. Svanidze AV, Lushnikov SG and Seiji Kojima, 2006. Anomalous temperature behavior of hypersonic acoustic phonons in a lysozyme crystal. JETP Lett. 84: 551-555.
        doi:10.1134/S002136400622005X http://dx.doi.org/10.1134/S002136400622005X
5. Vasylkiv Yu, Nastishin Yu and Vlokh R, 2007. On the problem of phase transitions in lysozyme crystals. Ukr. J. Phys. Opt. 8: 83-87.
        doi:10.3116/16091833/8/2/83/2007 http://dx.doi.org/10.3116/16091833/8/2/83/2007
6. Teslyuk I, Vasylkiv Yu, Nastishin Yu and Vlokh R, 2007. Structural phase transition in lysozyme crystals. Ferroelectrics. 346: 49-55.
        doi:10.1080/00150190601180216 http://dx.doi.org/10.1080/00150190601180216
7. Teslyuk I, Nastishin Yu and Vlokh R, 2004. Structural phase transition in lysozyme single crystals. Ukr. J. Phys. Opt. 5: 118-122.
        doi:10.3116/16091833/5/4/118/2004 http://dx.doi.org/10.3116/16091833/5/4/118/2004
8. Blanch EW, Hecht L and Barron LD. 2003. Vibrational Raman optical activity of proteins, nucleic acids, and viruses. Methods 29: 196–209.
        doi:10.1016/S1046-2023(02)00310-9 http://dx.doi.org/10.1016/S1046-2023(02)00310-9
9. Hisako Urabe, Yoko Sugawara, Mitsuo Ataka and Allan Rupprecht. 1998. Low-Frequency Raman Spectra of Lysozyme Crystals and Oriented DNA Films: Dynamics of Crystal Water. Biophys. J. 74: 1533–1540
10. Hédoux A, Ionov R, Willart J-F, Lerbret A, Affouard F, Guinet Y, Descamps M, Prévost D, Paccou L and Danéde F, 2006. Evidence of a two-stage thermal denaturation process in lysozyme: A Raman scattering and differential scanning calorimetry investigation. J. Chem. Phys. 124: 014703-1-7.
11. Ionov R, He’doux A, Guinet Y, Bordat P, Lerbret A, Affouard F, Prevost D and Descamps M, 2006. Sugar bioprotective effects on thermal denaturation of lysozyme: Insights from Raman scattering experiments and molecular dynamics simulation J. Non-Cryst. Sol. 352: 4430 –4436
12. Razumas V, Talaikyte Z, Barauskas J, Larsson K, Miezis Y and Nylander T, 1996. Effects of distearoylphosphatidylglycerol and lysozyme on the structure of the monoolein-water cubic phase: X ray diffraction and Raman scattering studies. Chem. and Phys. of Lipids. 84: 123-138.
        doi:10.1016/S0009-3084(96)02629-1 http://dx.doi.org/10.1016/S0009-3084(96)02629-1
13. Lu J, Cow P-S and Carpenter K, 2003. Phase transitions in lysozyme solutions characterized by differential scanning calorimetry. Prog. Cryst. Growth Charact. Mat. 46: 105-129.
        doi:10.1016/S0960-8974(03)90004-0 http://dx.doi.org/10.1016/S0960-8974(03)90004-0
