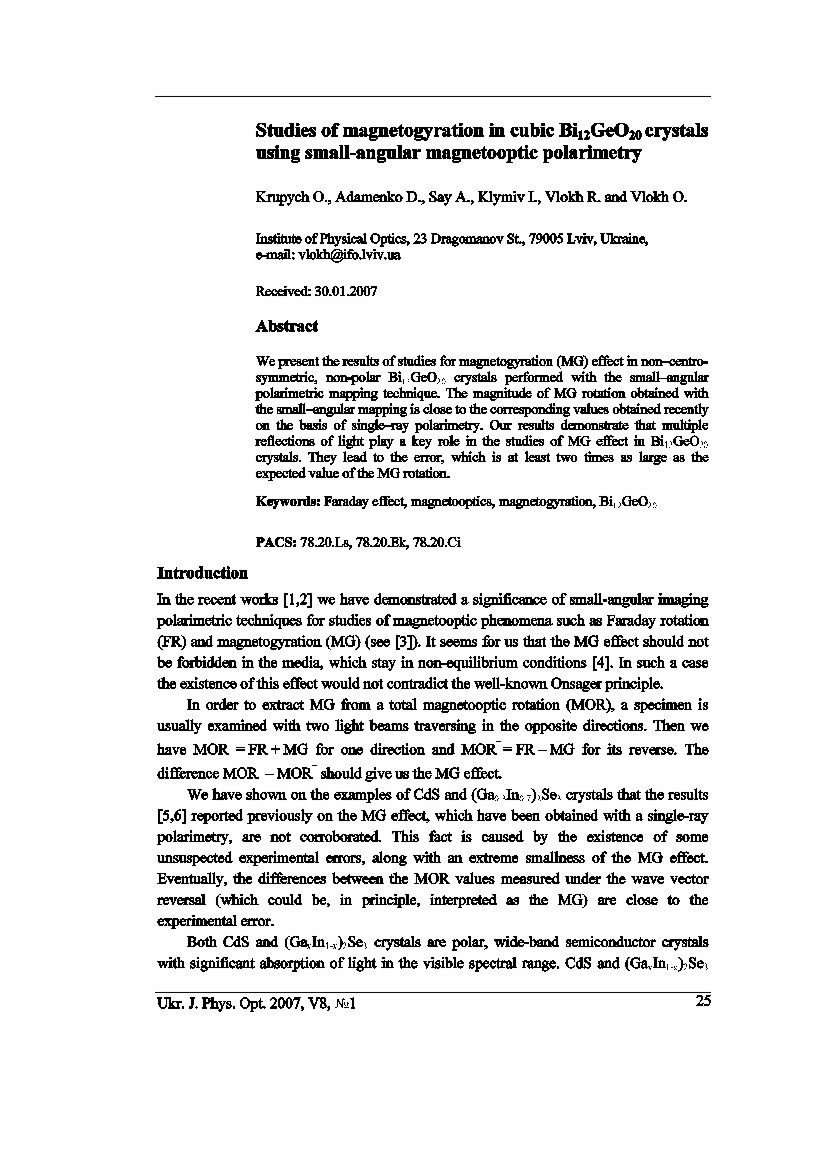

Studies of magnetogyration in cubic Bi12GeO20 crystals using small-angular magnetooptic polarimetry
Krupych O., Adamenko D., Say A., Klymiv I., Vlokh R., Vlokh O.

Institute of Physical Optics, 23 Dragomanov St., 79005 Lviv, Ukraine

download full version

We present the results of studies for magnetogyration (MG) effect in non-centro-symmetric, non-polar Bi12GeO20 crystals performed with the small-angular polarimetric mapping technique. The magnitude of MG rotation obtained with the small-angular mapping is close to the corresponding values obtained recently on the basis of single-ray polarimetry. Our results demonstrate that multiple reflections of light play a key role in the studies of MG effect in Bi12GeO20 crystals. They lead to the error, which is at least two times as large as the expected value of the MG rotation.

Keywords: Faraday effect, magnetooptics, magnetogyration, Bi12GeO20

PACS: 78.20.Ls, 78.20.Ek, 78.20.Ci
Ukr. J. Phys. Opt. 8 25-30
doi: 10.3116/16091833/8/1/25/2007
Received: 30.01.2007


REFERENCES

1. Vlokh R, Adamenko D, Krupych O and Vlokh OG, 2007. Small-Angular Polarimetric Magnetooptical Mapping and the Problem of Magnetogyration. Ferroelectrics. at press.
2. Krupych O, Vasylkiv Yu, Adamenko D, Vlokh R and Vlokh O G, 2006. Application of Small-Angular Magnetooptic Polarimetry for Study of Magnetogyration in (Ga0.3In0.7)2Se3 and SiO2 Crystals. Ukr. J. Phys. Opt. 7: 171-178.
        doi:10.3116/16091833/7/4/171/2006  http://dx.doi.org/10.3116/16091833/7/4/171/2006
3. Zheludev IS, Vlokh OG, Sergatyuk VA, 1985. Magnetogyration and other phenomena described by second-rank axial tensors. Ferroelectrics. 63: 97 – 105.
        doi: 10.1080/00150198508221389
4. Allahverdyan AE and Nieuwenhuizen ThM, 2000. Steady adiabatic state: Its thermodynamics, entropy production, energy dissipation, and violation of Onsager relations. Phys. Rev. E. 62: 845-850.
        doi:10.1103/PhysRevE.62.845 http://dx.doi.org/10.1103/PhysRevE.62.845
5. Vlokh R, Vlokh O G, Klymiv I and Adamenko D, 2002. Magnetogyration in the CdS and (Gax In1-x)2Se3 Crystals in the Spectral Range of Interband Absorption. Ukr. J. Phys. Opt. 3: 271-276.
        doi:10.3116/16091833/3/4/271/2002 http://dx.doi.org/10.3116/16091833/3/4/271/2002
6. Vlokh R, Vlokh O G, Klymiv I and Adamenko D, 2002. Once More about Magnetogyration (Case of the CdS, (Gax In1-x)2Se3, SiO2 and Li2B4O7 Crystals). Ukr. J. Phys. Opt. 3: 166-170.
        doi:10.3116/16091833/3/2/166/2002 http://dx.doi.org/10.3116/16091833/3/2/166/2002
7. Petrov MP, Bryksin VV, and Petrov VM, Wevering S and Krätzig E, 1999. Dispersion law of photorefractive waves in sillenites. Phys. Rev. A. 60: 2413 – 2419.
        doi:10.1103/PhysRevA.60.2413 http://dx.doi.org/10.1103/PhysRevA.60.2413
8. Sturman BI and Podivilov EV, Ringhofer KH, Shamonina E, and Kamenov VP, Nippolainen E, Prokofiev VV and Kamshilin AA, 1999. Theory of photorefractive vectorial wave coupling in cubic crystals. Phys. Rev. E 60: 3332 – 3352.
        doi:10.1103/PhysRevE.60.3332 http://dx.doi.org/10.1103/PhysRevE.60.3332
9. Vlokh R, Adamenko D, Say A, Klymiv I and Vlokh O G, 2004. Magnetogyration in Absorbing Cubic Bi12GeO20 Crystals. Ukr. J. Phys. Opt. 5: 57-60.
        doi:10.3116/16091833/5/2/57/2004 http://dx.doi.org/10.3116/16091833/5/2/57/2004
10. Vlokh R, Krupych O, Kostyrko M, Netolya V and Trach I, 2001. Gradient thermooptical effect in LiNbO3 crystals. Ukr. J. Phys. Opt. 2: 154-158.
        doi:10.3116/16091833/2/3/154/2001 http://dx.doi.org/10.3116/16091833/2/3/154/2001
11. Kushnir OS, 2004. Multiple Reflections in Crystals: Natural and Faraday Optical Activity. Ukr.J.Phys.Opt. 5: 87-95.
        doi:10.3116/16091833/5/3/87/2004 http://dx.doi.org/10.3116/16091833/5/3/87/2004
12. Kushnir OS, 2003. Effect of multiple reflections of light on the optical characteristics of crystals. J.Opt. A Pure Appl. Opt. 5: 478-488.
        doi:10.1088/1464-4258/5/5/308 http://dx.doi.org/10.1088/1464-4258/5/5/308
