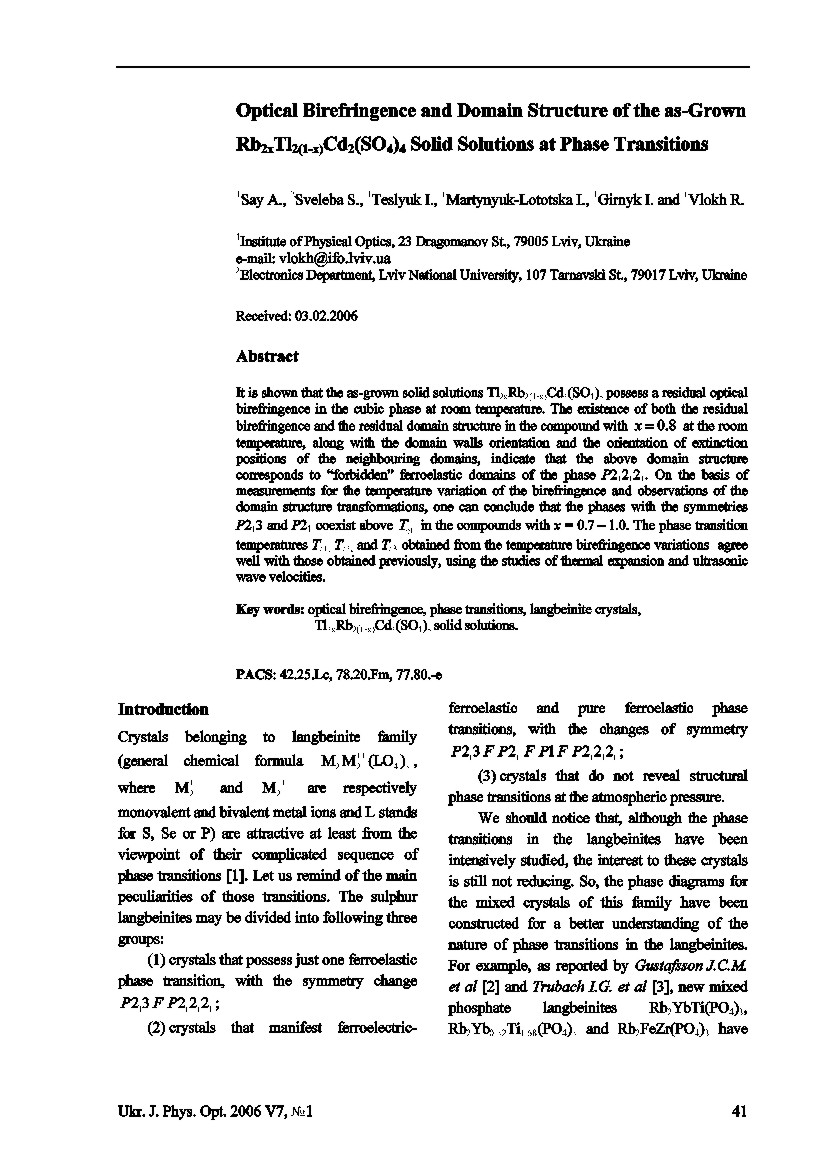

Optical Birefringence and Domain Structure of the as-grown Rb2xTl2(1-x)Cd2(SO4)3 Solid Solutions at Phase Transitions
¹Say A., ²Sveleba S., ¹Teslyuk I., ¹Martynyuk-Lototska I., ¹Girnyk I., ¹Vlokh R.

¹Institute of Physical Optics, 23 Dragomanov St., 79005 Lviv, Ukraine
²Electronics Department, Lviv National University, 107 Tarnavski St., 79017 Lviv, Ukraine

download full version and Errata

It is shown that the as-grown solid solutions Tl2xRb2(1-x)Cd2(SO4)3 possess a residual optical birefringence in the cubic phase at room temperature. The existence of both the residual birefringence and the residual domain structure in the compound with at the room temperature, along with the domain walls orientation and the orientation of extinction positions of the neighbouring domains, indicate that the above domain structure corresponds to “forbidden” ferroelastic domains of the phase P212121. On the basis of measurements for the temperature variation of the birefringence and observations of the domain structure transformations, one can conclude that the phases with the symmetries P213 and P21 coexist above Tc1 in the compounds with x = 0.7 – 1.0. The phase transition temperatures Tc1, Tc2, and Tc3 obtained from the temperature birefringence variations agree well with those obtained previously, using the studies of thermal expansion and ultrasonic wave velocities.

Key words: optical birefringence, phase transitions, langbeinite crystals, Tl2xRb2(1-x)Cd2(SO4)3 solid solutions.

PACS: 42.25.Lc, 78.20.Fm, 77.80.-e
Ukr. J. Phys. Opt. 7 41-47 doi: 10.3116/16091833/7/1/41/2006
Receiced: 03.02.2006

REFERENCES

1.Vlokh R, Vlokh OV, Skab I and Girnyk I, 2002. Ukr. J. Phys. Opt. 3: 144.
        doi:10.3116/16091833/3/2/144/2002 http://dx.doi.org/10.3116/16091833/3/2/144/2002
Vlokh R, Vlokh OV, Skab I and Girnyk I, 2002. Ukr. J. Phys. Opt. 3: 215.
        doi:10.3116/16091833/3/3/215/2002 http://dx.doi.org/10.3116/16091833/3/3/215/2002
Vlokh R, Vlokh OV, Skab I and Girnyk I, 2002. Ukr. J. Phys. Opt. 3: 231.
        doi:10.3116/16091833/3/4/231/2002 http://dx.doi.org/10.3116/16091833/3/4/231/2002
2. Gustafsson JCM, Norberg ST, Svensson G and Albertsson J, 2005. Acta Cryst. C61 i9.
3. Trubach IG, Beskrovny AI, Orlova AI, Orlova VA and Karazhkovskaya VS, 2004. Crystallogr. Rep. 49: 895.
        doi:10.1134/1.1828132 http://dx.doi.org/10.1134/1.1828132
4. Vlokh R, Girnyk I, Vlokh OV, Skab I, Say A and Uesu Y, 2004. Ukr. J. Phys. Opt. 5: 141.
        doi:10.3116/16091833/5/4/141/2004 http://dx.doi.org/10.3116/16091833/5/4/141/2004
5. Vlokh R, Vlokh O, Kityk A, Skab I, Czapla Z, Kosturek B and Dacko S, 2000. Ferroelectrics 237: 481.
6. Vlokh R, Girnyk I, Martunyuk-Lototska I, Czapla Z, Dacko S and Kosturek B, 2004. Ferroelectrics 303: 51.
        doi:10.1080/00150190490456556 http://dx.doi.org/10.1080/00150190490456556
7. Dvorak V, 1972. Phys. Stat. Sol. (b) 52: 93. Dvorak V, 1974. Phys. Stat. Sol. (b) 66: K87.
8. Vlokh R, Skab I, Girnyk I, Czapla Z, Dacko S and Kosturek B, 2000. Ukr. J. Phys. Opt. 1: 103.
        doi:10.3116/16091833/1/2/103/2000 http://dx.doi.org/10.3116/16091833/1/2/103/2000
9. Maeda M, 1980. J. Phys. Soc. Jap. 49: 1090.
        doi:10.1143/JPSJ.49.1090 http://dx.doi.org/10.1143/JPSJ.49.1090
10. Brezina B and Havrankova M, 1974. J. Cryst. Growth 21: 77.
        doi:10.1016/0022-0248(74)90154-7 http://dx.doi.org/10.1016/0022-0248(74)90154-7
11. Magome E, Moriyoshi C, Itoh K and Vlokh R, 2002. Ferroelectrics 269: 93.
        doi:10.1080/00150190211164 http://dx.doi.org/10.1080/00150190211164
12. Vlokh RO and Shopa YI, 1998. Kristallografiya 33: 520.
13. Hernandez-Rodriguez C, Geday MA, Kreisel J, Glazer AM and Hidalgo-Lopez A, 2003. J. Appl. Cryst. 36: 914.
        doi:10.1107/S002188980300476X http://dx.doi.org/10.1107/S002188980300476X
14. Itoh K, Ukeda T and Nakamura E, 1992. J. Phys. Soc. Jap. 61: 4657.
        doi:10.1143/JPSJ.61.4657 http://dx.doi.org/10.1143/JPSJ.61.4657
15. Sapriel J, 1975. Phys. Rev. B 12: 5128
        doi:10.1103/PhysRevB.12.5128 http://dx.doi.org/10.1103/PhysRevB.12.5128
