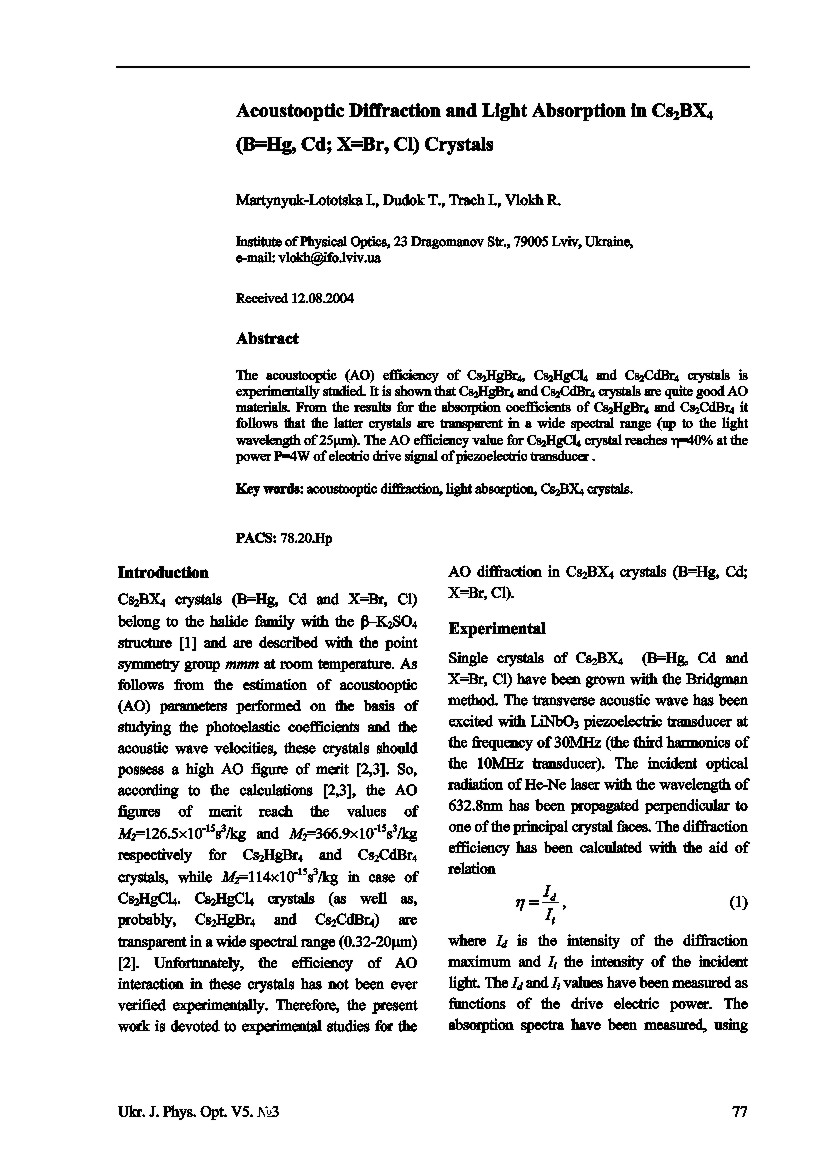

Acoustooptic Diffraction and Light Absorption in Cs2BX4 (B=Hg, Cd; X=Br, Cl) Crystals
Martynyuk-Lototska I., Dudok T., Trach I., Vlokh R.

Institute of Physical Optics, 23 Dragomanov Str., 79005 Lviv, Ukraine

download full version

The acoustooptic (AO) efficiency of Cs2HgBr4, Cs2HgCl4 and Cs2CdBr4 crystals is experimentally studied. It is shown that Cs2HgBr4 and Cs2CdBr4 crystals are quite good AO materials. From the results for the absorption coefficients of Cs2HgBr4 and Cs2CdBr4 it follows that the latter crystals are transparent in a wide spectral range (up to the light wavelength of 25mm). The AO efficiency value for Cs2HgCl4 crystal reaches h=40% at the power P=4W of electric drive signal of piezoelectric transducer .

Key words: acoustooptic diffraction, light absorption, Cs2BX4 crystals.
PACS: 78.20.Hp

doi 10.3116/16091833/5/3/77/2004

1. Plesko S, Kind R, Arend H, 1980. Phys. Stat. Sol. 61: 87.
2. Kityk AV, Zadorozhna AV, Sydoryk IV, Martynyuk-Lototska IYu et al, Abstracts EMF-9, (1999) 92;
Kaidan MV, Zadorozhna AV et al, 2002. Appl. Opt. 41: 5341.
Kaidan MV, Zadorozhna AV, et al, 2003. Opt. Mat. 22: 263.
        doi:10.1016/S0925-3467(02)00286-0   http://dx.doi.org/10.1016/S0925-3467(02)00286-0
3. Krupych O, Girnyk I, Trach I, Martynyuk-Lototska I, Vlokh R, Vlokh O, 2004. Ukr. J. Phys. Opt. 5: 8.
        doi:10.3116/16091833/5/1/8/2004  http://dx.doi.org/10.3116/16091833/5/1/8/2004
